CEDM7004 BK PBFREE

In Stock: 4,537

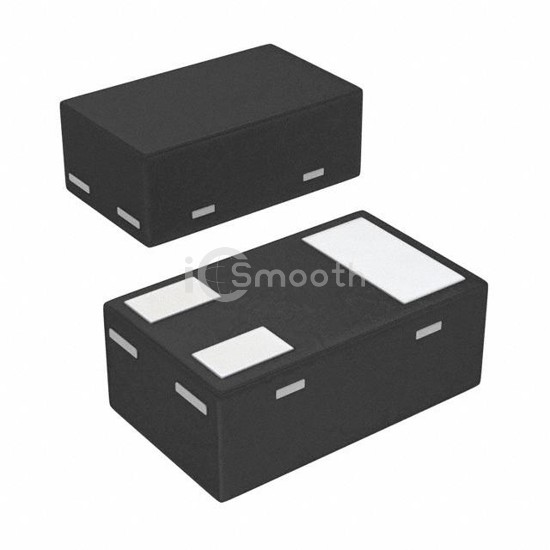

CEDM7004 BK PBFREE - Central Semiconductor Corp - Transistors - FETs, MOSFETs - Single
REF: CEDM7004 BK PBFREE Central Semiconductor Corp
CEDM7004 BK PBFREE

Central Semiconductor Corp

MOSFET N-CH 30V 1.78A SOT-883

CEDM7004 BK PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 30V 1.78A SOT-883. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 4,537

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.78A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs460mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.79 nC @ 4.5 V
Vgs (Max)8V
Input Capacitance (Ciss) (Max) @ Vds43 pF @ 25 V
FET Feature-
Power Dissipation (Max)100mW (Ta)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-883
Package / CaseSC-101, SOT-883
