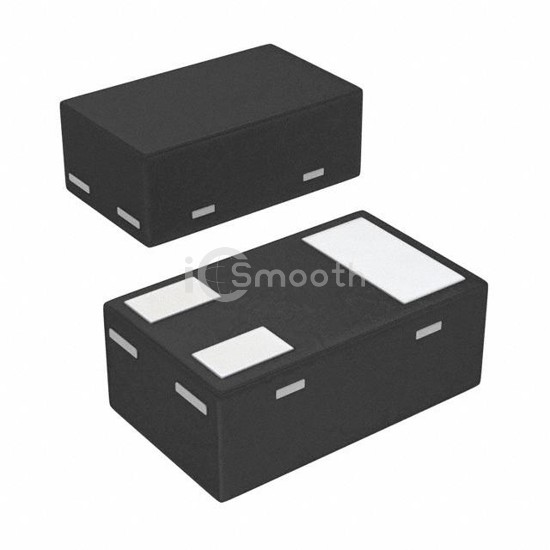

Name: CEDM7002AE TR PBFREE
Brand: Central Semiconductor Corp
SKU: CEDM7002AE TR PBFREE
Price: 0.40 USD
Availability: InStock

REF: CEDM7002AE TR PBFREE Central Semiconductor Corp

CEDM7002AE TR PBFREE

Central Semiconductor Corp

MOSFET N-CH 60V 300MA SOT883L

CEDM7002AE TR PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 60V 300MA SOT883L. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 50

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.5 nC @ 4.5 V

Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	100mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883L
Package / Case	SC-101, SOT-883
