Name: CDM3-800 TR13 PBFREE
Brand: Central Semiconductor Corp
SKU: CDM3-800 TR13 PBFREE
Availability: InStock

REF: CDM3-800 TR13 PBFREE Central Semiconductor Corp

CDM3-800 TR13 PBFREE

Central Semiconductor Corp

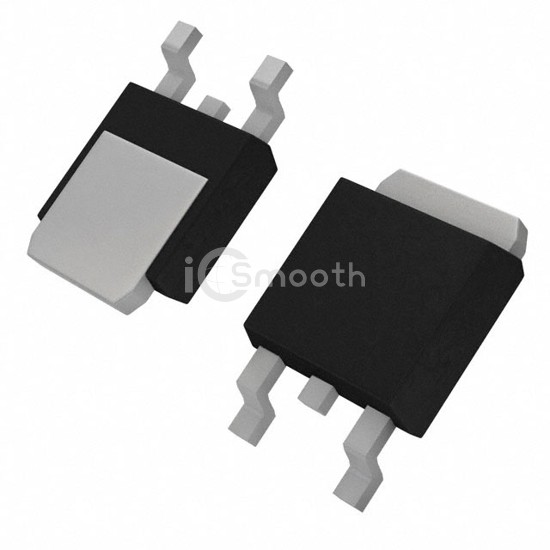

MOSFET N-CH 800V 3A DPAK

CDM3-800 TR13 PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 800V 3A DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 4,317

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800 V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.8Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11.3 nC @ 10 V

Vgs (Max)	30V
Input Capacitance (Ciss) (Max) @ Vds	415 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
