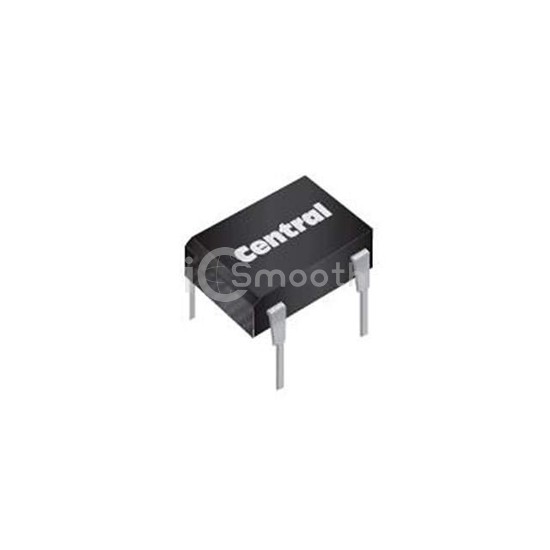

Name: CBR1-D100 PBFREE
Brand: Central Semiconductor Corp
SKU: CBR1-D100 PBFREE
Price: 0.94 USD
Availability: InStock

REF: CBR1-D100 PBFREE Central Semiconductor Corp

CBR1-D100 PBFREE

Central Semiconductor Corp

BRIDGE RECT 1PHASE 1KV 1A 4DIP

CBR1-D100 PBFREE is a Diodes - Bridge Rectifiers manufactured by Central Semiconductor Corp. BRIDGE RECT 1PHASE 1KV 1A 4DIP. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case 4-EDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 4

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	1 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1 A

Current - Reverse Leakage @ Vr	10 µA @ 1000 V
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
