Name: 2N7002 BK PBFREE
Brand: Central Semiconductor Corp
SKU: 2N7002 BK PBFREE
Price: 0.10 USD
Availability: InStock

REF: 2N7002 BK PBFREE Central Semiconductor Corp

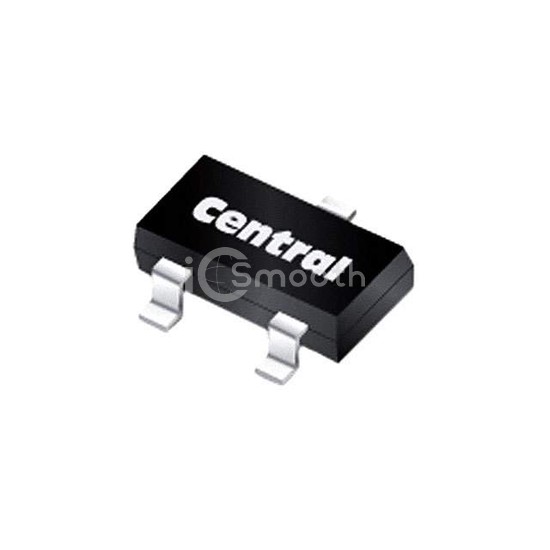

2N7002 BK PBFREE

Central Semiconductor Corp

MOSFET N-CH 60V 115MA SOT23

2N7002 BK PBFREE is a Transistors - FETs, MOSFETs - Single manufactured by Central Semiconductor Corp. MOSFET N-CH 60V 115MA SOT23. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 3,699

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	7.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.59 nC @ 4.5 V

Vgs (Max)	40V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
