Name: 2N6075B PBFREE
Brand: Central Semiconductor Corp
SKU: 2N6075B PBFREE
Availability: InStock

REF: 2N6075B PBFREE Central Semiconductor Corp

2N6075B PBFREE

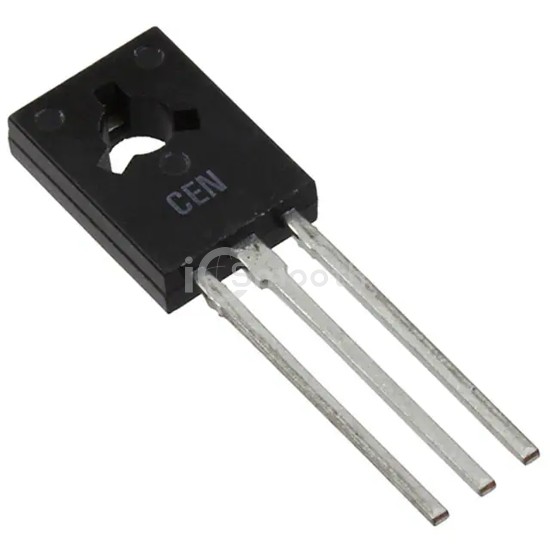

TRIAC 4A 600V TO-126

2N6075B PBFREE is a Thyristors - TRIACs manufactured by Central Semiconductor Corp. TRIAC 4A 600V TO-126. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (TJ), package / case TO-225AA, TO-126-3.

Request a Quote

In Stock: 1,246

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Logic - Sensitive Gate
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	30A @ 60Hz
Current - Gate Trigger (Igt) (Max)	5 mA

Current - Hold (Ih) (Max)	15 mA
Configuration	Single
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	TO-126
