OPTOISO 3.75KV OPEN COLL 8DIP

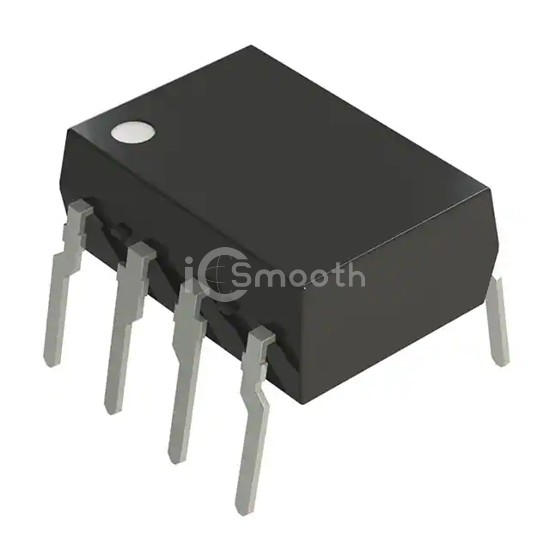

PS9614-A is a Optoisolators - Logic Output manufactured by CEL. OPTOISO 3.75KV OPEN COLL 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 6,873
| Product Status | Obsolete |
|---|---|
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 25 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
|---|---|
| Rise / Fall Time (Typ) | 20ns, 8ns |
| Voltage - Forward (Vf) (Typ) | 1.65V |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
