NESG7030M04-A

In Stock: 9,588

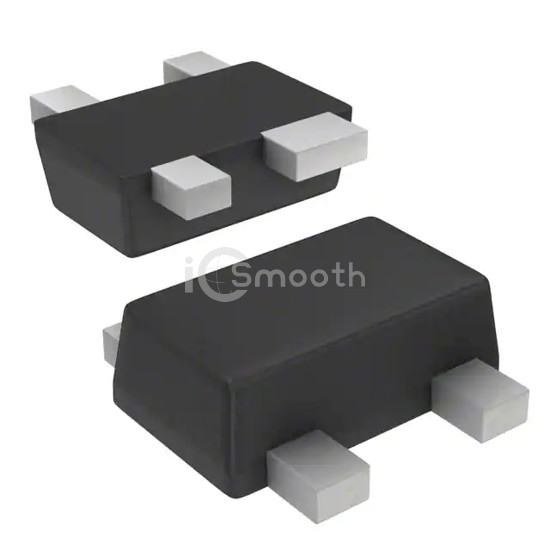

NESG7030M04-A - CEL - Transistors - Bipolar (BJT) - RF
REF: NESG7030M04-A CEL
NESG7030M04-A

CEL

RF TRANS NPN 4.3V 5.8GHZ M04

NESG7030M04-A is a Transistors - Bipolar (BJT) - RF manufactured by CEL. RF TRANS NPN 4.3V 5.8GHZ M04. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-343F, current - collector (ic) (max) 30mA.

Datasheet Request a Quote

In Stock: 9,588

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)4.3V
Frequency - Transition5.8GHz
Noise Figure (dB Typ @ f)0.5dB ~ 0.75dB @ 2GHz ~ 5.8GHz
Gain14dB ~ 21dB
Power - Max125mW
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 5mA, 2V
Current - Collector (Ic) (Max)30mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-343F
Supplier Device PackageM04
