2SC5013-A

In Stock: 6,759

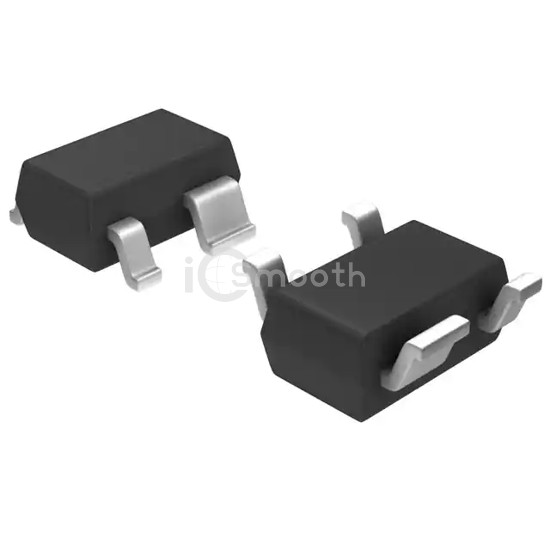

2SC5013-A - CEL - Transistors - Bipolar (BJT) - RF
REF: 2SC5013-A CEL
2SC5013-A

CEL

RF TRANS NPN 10V 10GHZ SOT343

2SC5013-A is a Transistors - Bipolar (BJT) - RF manufactured by CEL. RF TRANS NPN 10V 10GHZ SOT343. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-82A, SOT-343, current - collector (ic) (max) 35mA.

Datasheet Request a Quote

In Stock: 6,759

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition10GHz
Noise Figure (dB Typ @ f)1.8dB @ 2GHz
Gain9.5dB
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 10mA, 6V
Current - Collector (Ic) (Max)35mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-82A, SOT-343
Supplier Device Package-
