CD-HD01

In Stock: 9,163

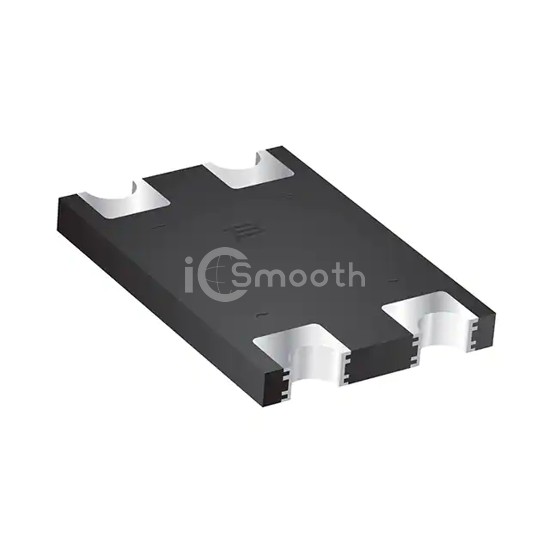

CD-HD01 - Bourns Inc. - Diodes - Bridge Rectifiers
REF: CD-HD01 Bourns Inc.
CD-HD01

Bourns Inc.

BRIDGE RECT 1PHASE 100V 1A

CD-HD01 is a Diodes - Bridge Rectifiers manufactured by Bourns Inc.. BRIDGE RECT 1PHASE 100V 1A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case Chip, Concave Terminals.

Datasheet Request a Quote

In Stock: 9,163

Tiered Pricing USD
1+ $0.9100 —
10+ $0.5650 -38%
100+ $0.3675 -60%
500+ $0.2822 -69%
1,000+ $0.2360 -74%
2,000+ $0.2235 -75% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologySchottky
Voltage - Peak Reverse (Max)100 V
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If850 mV @ 1 A
Current - Reverse Leakage @ Vr200 µA @ 100 V
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseChip, Concave Terminals
Supplier Device Package-
