Name: ADP199ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADP199ACBZ-R7
Price: 0.53 USD
Availability: InStock

REF: ADP199ACBZ-R7 Analog Devices Inc.

ADP199ACBZ-R7

Analog Devices Inc.

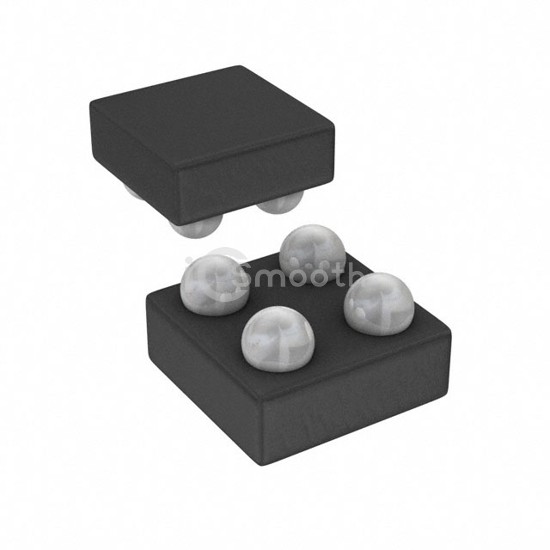

IC PWR SWITCH P-CHAN 1:1 4WLCSP

ADP199ACBZ-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH P-CHAN 1:1 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 4-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 9,198

Tiered Pricing USD

3,000+ $0.5273 —

6,000+ $0.5000 -5% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	0.9V ~ 3.6V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	500mA
Rds On (Typ)	40mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled
Fault Protection	-
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (0.74x0.74)
Package / Case	4-UFBGA, WLCSP
