Name: ADP198ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADP198ACBZ-R7
Price: 2.17 USD
Availability: InStock

REF: ADP198ACBZ-R7 Analog Devices Inc.

ADP198ACBZ-R7

Analog Devices Inc.

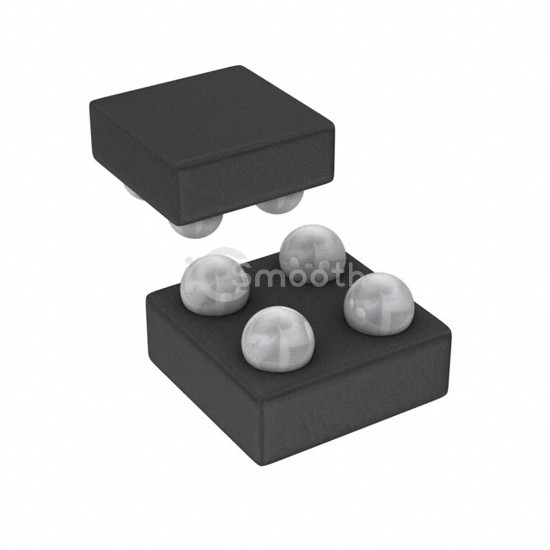

IC PWR SWITCH P-CHAN 1:1 4WLCSP

ADP198ACBZ-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH P-CHAN 1:1 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 4-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 612

Tiered Pricing USD

1+ $2.1700 —

10+ $1.3560 -38%

25+ $1.1424 -47%

100+ $0.9013 -58%

250+ $0.7828 -64%

500+ $0.7099 -67%

1,000+ $0.6489 -70% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	1.65V ~ 6.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1A
Rds On (Typ)	40mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled
Fault Protection	Reverse Current
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (0.95x1.03)
Package / Case	4-UFBGA, WLCSP
