Name: ADP1196ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADP1196ACBZ-R7
Price: 0.71 USD
Availability: InStock

REF: ADP1196ACBZ-R7 Analog Devices Inc.

ADP1196ACBZ-R7

Analog Devices Inc.

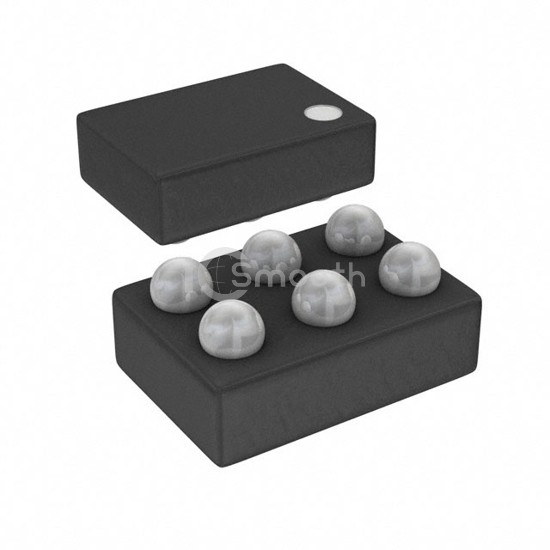

IC PWR SWITCH N-CHAN 1:1 6WLCSP

ADP1196ACBZ-R7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Analog Devices Inc.. IC PWR SWITCH N-CHAN 1:1 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 6-WFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 6,715

Tiered Pricing USD

3,000+ $0.7094 —

6,000+ $0.6710 -5%

9,000+ $0.6517 -8%

15,000+ $0.6301 -11% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side or Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	1.83V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	3A
Rds On (Typ)	10mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 105°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WLCSP (1.45x0.95)
Package / Case	6-WFBGA, WLCSP
