MSC360-1A-C0004-ERA360-05K

In Stock: 15

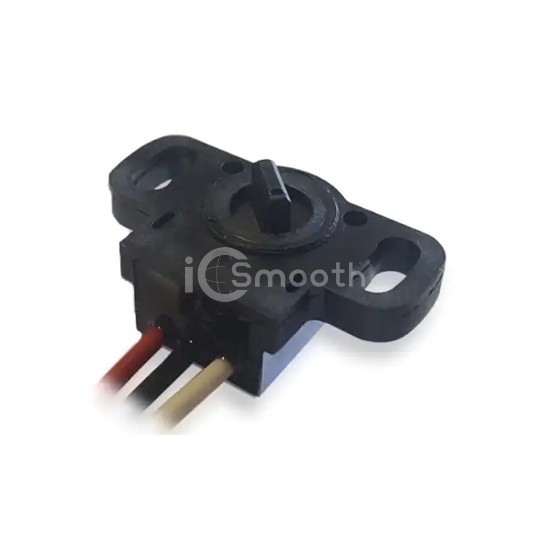

MSC360-1A-C0004-ERA360-05K - Amphenol Piher Sensing Systems - Position Sensors - Angle, Linear Position Measuring
REF: MSC360-1A-C0004-ERA360-05K Amphenol Piher Sensing Systems
MSC360-1A-C0004-ERA360-05K

Amphenol Piher Sensing Systems

MINIATURE HALL-EFFECT ROTARY POS

MSC360-1A-C0004-ERA360-05K is a Position Sensors - Angle, Linear Position Measuring manufactured by Amphenol Piher Sensing Systems. MINIATURE HALL-EFFECT ROTARY POS. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case Box with Wire Leads.

Datasheet Request a Quote

In Stock: 15

Tiered Pricing USD
1+ $45.4300 —
5+ $41.8440 -8%
10+ $40.5080 -11%
30+ $38.6127 -15%
60+ $37.5435 -17%
120+ $36.5623 -20% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringLinear, Rotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeFlatted Shaft
Linearity±1.5%
Resistance-
Resistance Tolerance-
Voltage - Supply4.5V ~ 5.5V
Mounting TypeChassis Mount
Termination StyleWire Leads
Operating Temperature-40°C ~ 125°C
Package / CaseBox with Wire Leads
Supplier Device Package-
