Name: AOZ6237QI
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ6237QI
Price: 0.27 USD
Availability: InStock

REF: AOZ6237QI Alpha & Omega Semiconductor Inc.

AOZ6237QI

Alpha & Omega Semiconductor Inc.

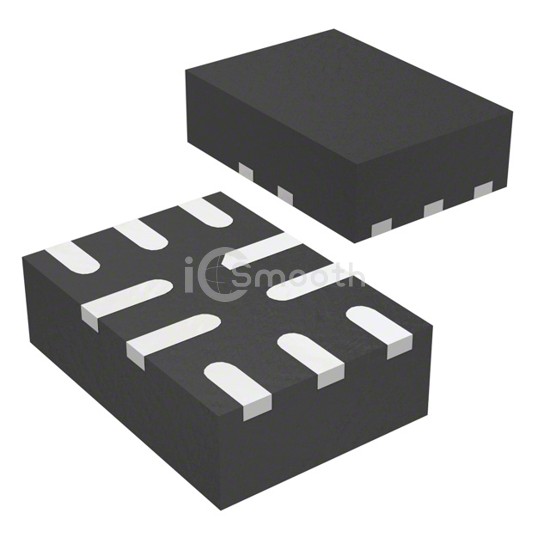

IC ANLG SWITCH DUAL SPDT 10QFN

AOZ6237QI is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Alpha & Omega Semiconductor Inc.. IC ANLG SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,708

Tiered Pricing USD

3,000+ $0.2665 —

6,000+ $0.2482 -7%

15,000+ $0.2390 -10%

30,000+ $0.2298 -14% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	400mOhm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	60ns, 35ns

-3db Bandwidth	50MHz
Charge Injection	40pC
Channel Capacitance (CS(off), CD(off))	15pF
Current - Leakage (IS(off)) (Max)	50nA
Crosstalk	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
