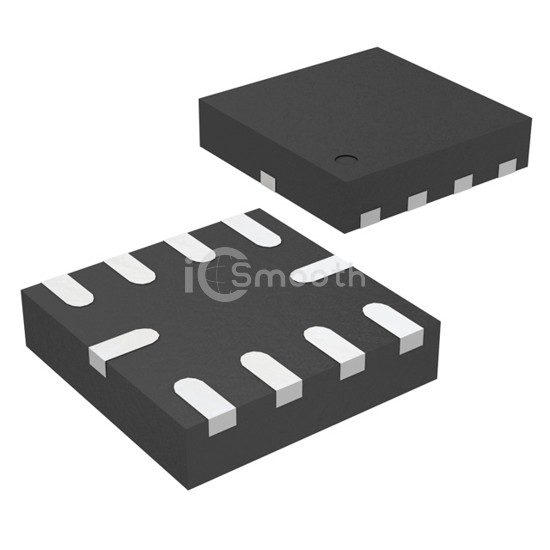

Name: AOZ6234QI
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ6234QI
Price: 0.24 USD
Availability: InStock

REF: AOZ6234QI Alpha & Omega Semiconductor Inc.

AOZ6234QI

Alpha & Omega Semiconductor Inc.

IC ANLG SWITCH DUAL SPDT 10QFN

AOZ6234QI is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Alpha & Omega Semiconductor Inc.. IC ANLG SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,056

Tiered Pricing USD

3,000+ $0.2416 —

6,000+ $0.2250 -7%

15,000+ $0.2167 -10%

30,000+ $0.2083 -14% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	2.3V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 40ns

-3db Bandwidth	45MHz
Charge Injection	24pC
Channel Capacitance (CS(off), CD(off))	22pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-95dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.6x2.1)
