Name: AOZ6232QI#A
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ6232QI#A
Availability: InStock

REF: AOZ6232QI#A Alpha & Omega Semiconductor Inc.

AOZ6232QI#A

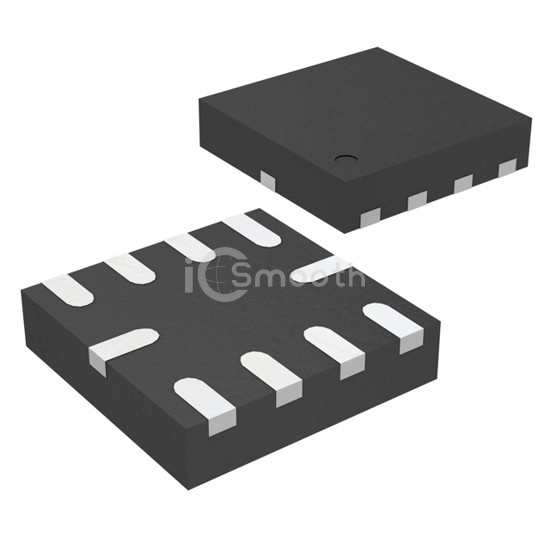

IC USB 2.0 SWITCH 10QFN

AOZ6232QI#A is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Alpha & Omega Semiconductor Inc.. IC USB 2.0 SWITCH 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,922

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	400mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 25ns

-3db Bandwidth	45MHz
Charge Injection	9pC
Channel Capacitance (CS(off), CD(off))	26pF
Current - Leakage (IS(off)) (Max)	50nA
Crosstalk	-95dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.6x2.1)
