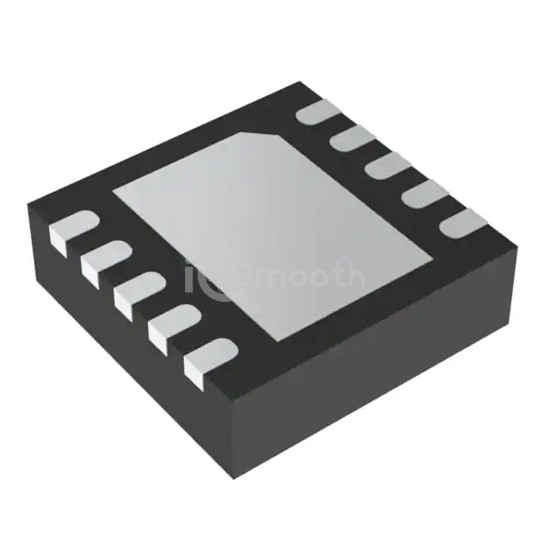

Name: AOZ1374DI
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ1374DI
Availability: InStock

REF: AOZ1374DI Alpha & Omega Semiconductor Inc.

AOZ1374DI

IC PWR SWITCH P-CH 10DFN

AOZ1374DI is a PMIC - Power Distribution Switches, Load Drivers manufactured by Alpha & Omega Semiconductor Inc.. IC PWR SWITCH P-CH 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,926

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	3.4V ~ 23V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	3.5A
Rds On (Typ)	36mOhm
Input Type	Non-Inverting
Features	Auto Restart, Latch Function
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	10-DFN (3x3)
Package / Case	10-VFDFN Exposed Pad
