Name: AOZ1320DI-05#A
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOZ1320DI-05#A
Availability: InStock

REF: AOZ1320DI-05#A Alpha & Omega Semiconductor Inc.

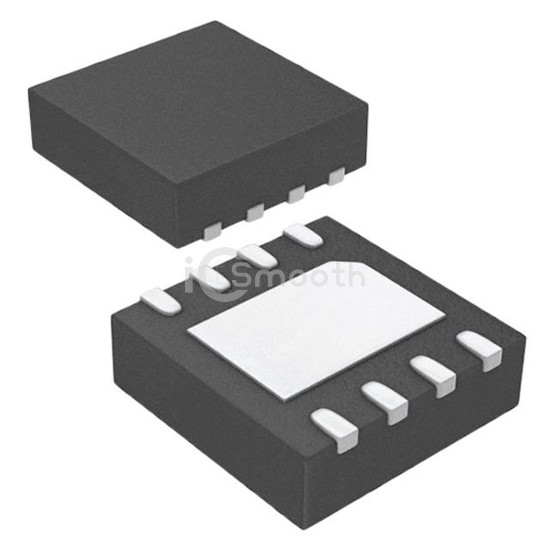

AOZ1320DI-05#A

IC PWR SWITCH P-CHAN 1:1 8DFN

AOZ1320DI-05#A is a PMIC - Power Distribution Switches, Load Drivers manufactured by Alpha & Omega Semiconductor Inc.. IC PWR SWITCH P-CHAN 1:1 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,744

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.3A
Rds On (Typ)	75mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled
Fault Protection	UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (2x2)
Package / Case	8-WFDFN Exposed Pad
