Name: AOWF412
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOWF412
Price: 1.15 USD
Availability: InStock

REF: AOWF412 Alpha & Omega Semiconductor Inc.

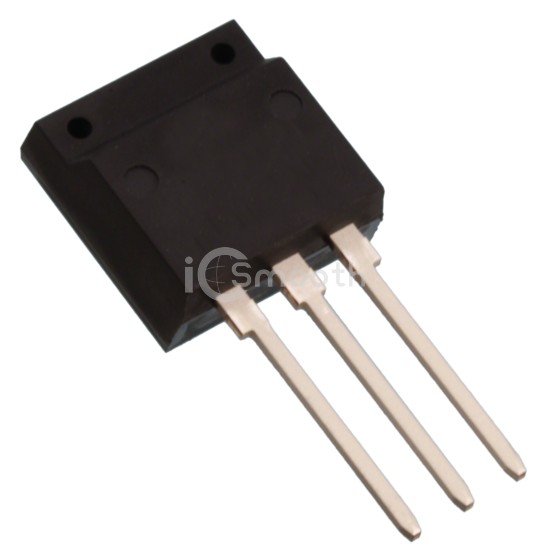

AOWF412

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 100V 7.8A/30A

AOWF412 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 100V 7.8A/30A. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 5,106

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	7.8A (Ta), 30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Rds On (Max) @ Id, Vgs	15.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	54 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	3220 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 33W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262F
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
