Name: AOWF360A70
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOWF360A70
Price: 1.11 USD
Availability: InStock

REF: AOWF360A70 Alpha & Omega Semiconductor Inc.

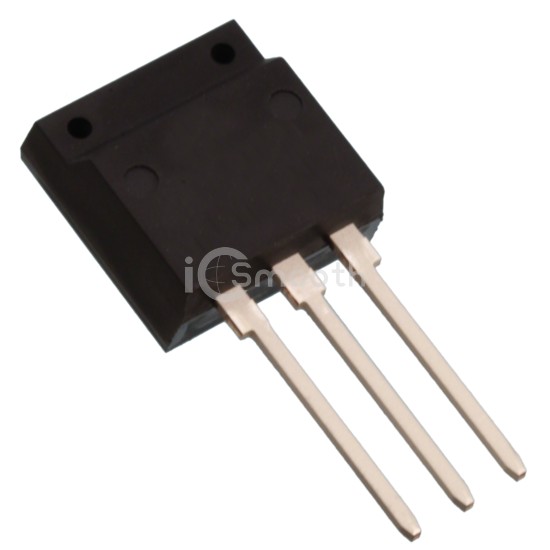

AOWF360A70

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 700V 12A TO262F

AOWF360A70 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 700V 12A TO262F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Request a Quote

In Stock: 3,269

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	12A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1360 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	29.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262F
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
