Name: AOWF2606
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOWF2606
Availability: InStock

REF: AOWF2606 Alpha & Omega Semiconductor Inc.

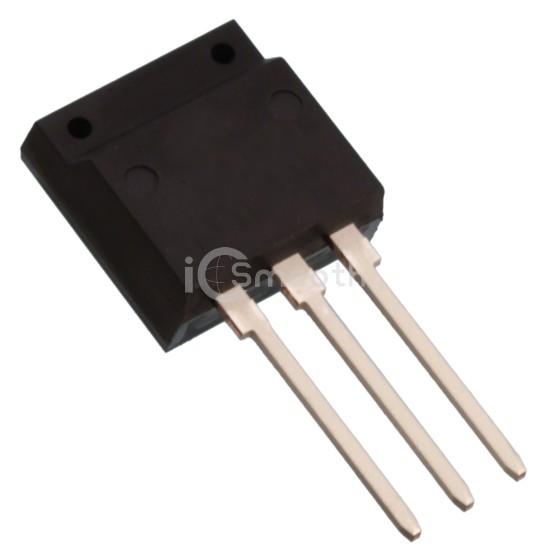

AOWF2606

MOSFET N-CH 60V 13A/51A TO262F

AOWF2606 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 60V 13A/51A TO262F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 4,056

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 51A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	75 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4050 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 33.3W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262F
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
