Name: AOWF190A60C
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOWF190A60C
Price: 1.62 USD
Availability: InStock

REF: AOWF190A60C Alpha & Omega Semiconductor Inc.

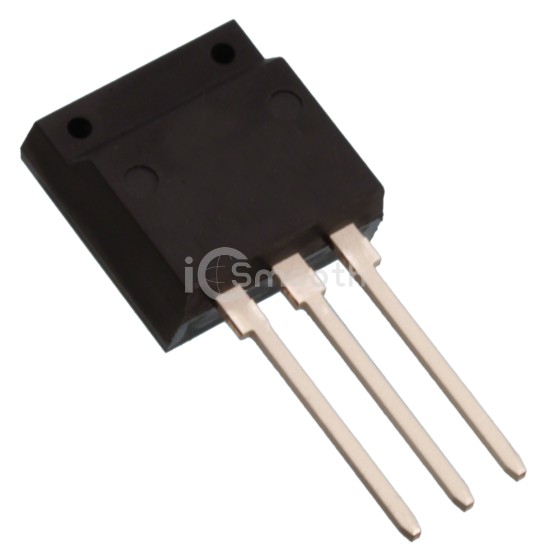

AOWF190A60C

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 600V 20A TO262F

AOWF190A60C is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 600V 20A TO262F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 5,653

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	20A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 7.6A, 10V
Vgs(th) (Max) @ Id	4.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	34 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1935 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	27W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262F
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
