Name: AOV11S60
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOV11S60
Price: 1.31 USD
Availability: InStock

REF: AOV11S60 Alpha & Omega Semiconductor Inc.

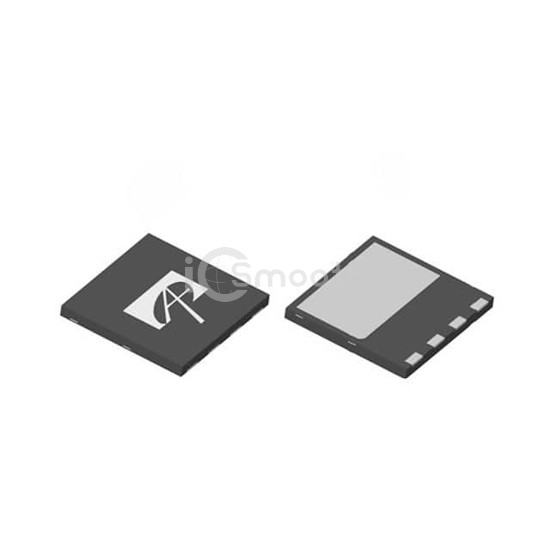

AOV11S60

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 600V 650MA/8A 4DFN

AOV11S60 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 600V 650MA/8A 4DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerTSFN.

Datasheet Request a Quote

In Stock: 5,058

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	650mA (Ta), 8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	500mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id	4.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	545 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	8.3W (Ta), 156W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DFN (8x8)
Package / Case	4-PowerTSFN
