Name: AOUS66616
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOUS66616
Price: 0.77 USD
Availability: InStock

REF: AOUS66616 Alpha & Omega Semiconductor Inc.

AOUS66616

Alpha & Omega Semiconductor Inc.

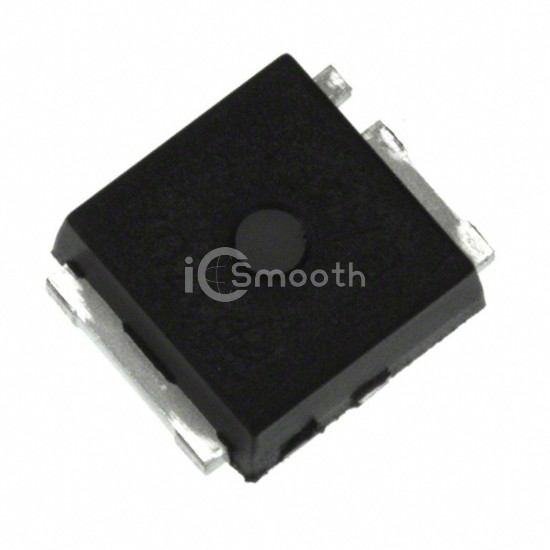

MOSFET N-CH 60V 33A/92A ULTRASO8

AOUS66616 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 60V 33A/92A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 6,817

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	33A (Ta), 92A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2870 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	6.2W (Ta), 92.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
