Name: AOUS66414
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOUS66414
Price: 0.79 USD
Availability: InStock

REF: AOUS66414 Alpha & Omega Semiconductor Inc.

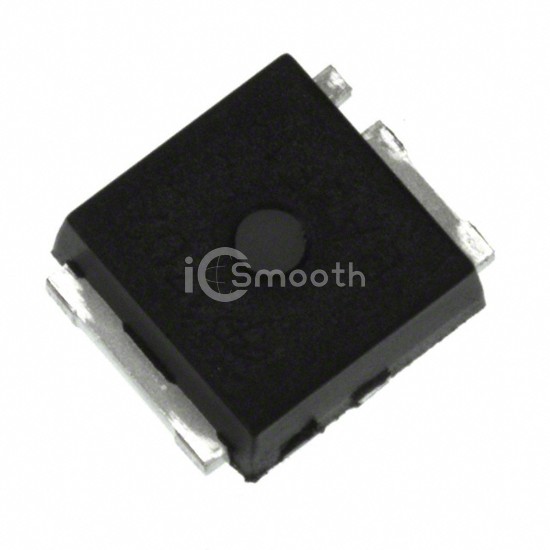

AOUS66414

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 40V 40A/92A ULTRASO8

AOUS66414 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 40V 40A/92A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-PowerSMD, Flat Leads.

Request a Quote

In Stock: 2,308

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	40A (Ta), 92A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4350 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	6.2W (Ta), 92W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
