Name: AOSN21319C
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOSN21319C
Price: 0.45 USD
Availability: InStock

REF: AOSN21319C Alpha & Omega Semiconductor Inc.

AOSN21319C

Alpha & Omega Semiconductor Inc.

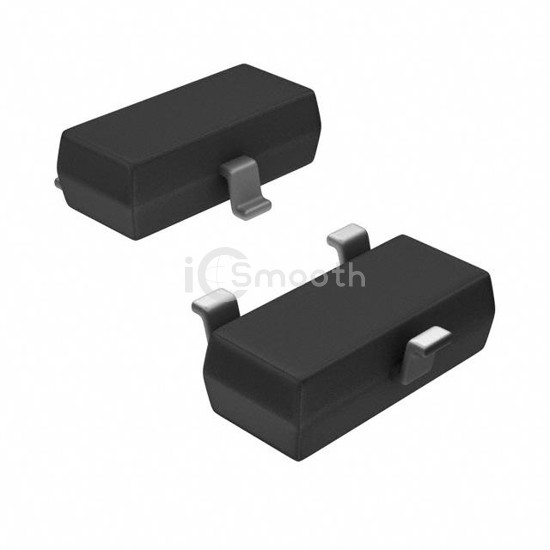

MOSFET P-CH 30V 2.6A SC70-3

AOSN21319C is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 2.6A SC70-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 55,775

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	100mOhm @ 2.6A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	320 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70-3
Package / Case	SC-70, SOT-323
