Name: AONT21313C
Brand: Alpha & Omega Semiconductor Inc.
SKU: AONT21313C
Availability: InStock

REF: AONT21313C Alpha & Omega Semiconductor Inc.

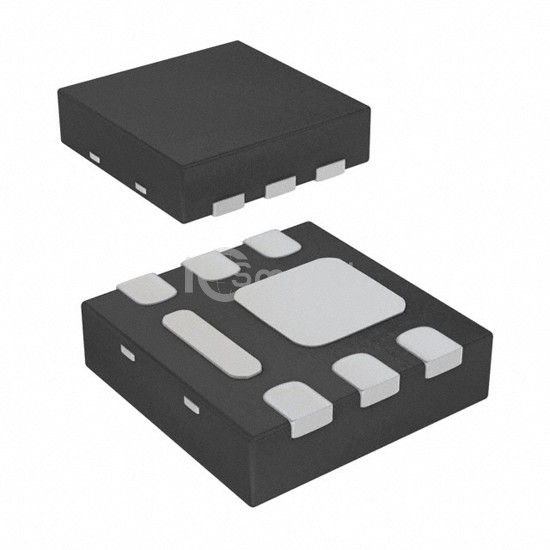

AONT21313C

MOSFET P-CH 30V 8A 6DFN

AONT21313C is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 8A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Request a Quote

In Stock: 2,493

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	530 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Package / Case	6-UDFN Exposed Pad
