Name: AON7442
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7442
Price: 0.56 USD
Availability: InStock

REF: AON7442 Alpha & Omega Semiconductor Inc.

AON7442

Alpha & Omega Semiconductor Inc.

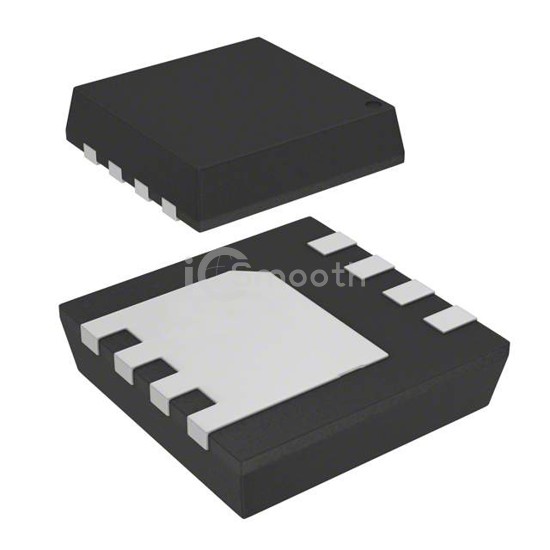

MOSFET N-CHANNEL 30V 50A 8DFN

AON7442 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CHANNEL 30V 50A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 8,364

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2994 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerWDFN
