Name: AON7423
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7423
Price: 1.00 USD
Availability: InStock

REF: AON7423 Alpha & Omega Semiconductor Inc.

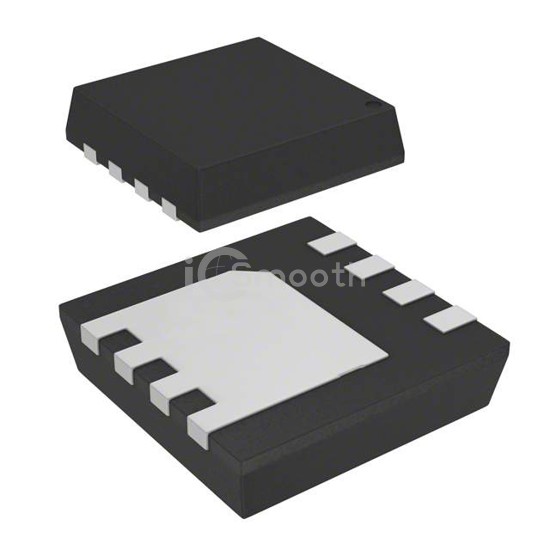

AON7423

Alpha & Omega Semiconductor Inc.

MOSFET P-CH 20V 28A/50A 8DFN

AON7423 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 20V 28A/50A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 3,515

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	28A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	5mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	5626 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	6.2W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerWDFN
