Name: AON7280
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON7280
Price: 1.80 USD
Availability: InStock

REF: AON7280 Alpha & Omega Semiconductor Inc.

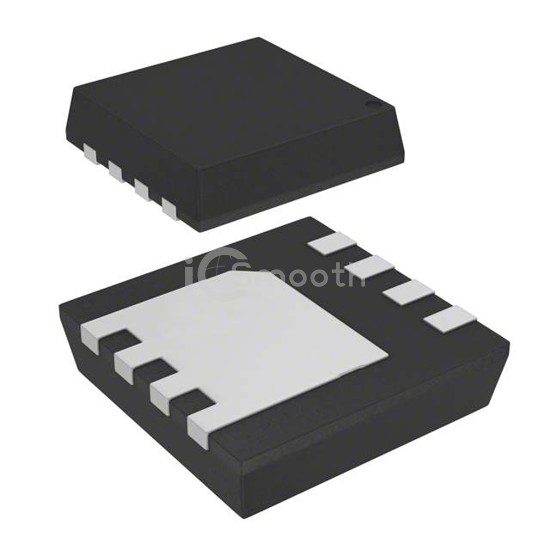

AON7280

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 80V 20A/50A 8DFN

AON7280 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 80V 20A/50A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 2,872

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	20A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1871 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	6.3W (Ta), 83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerWDFN
