Name: AON6758_102
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON6758_102
Availability: InStock

REF: AON6758_102 Alpha & Omega Semiconductor Inc.

AON6758_102

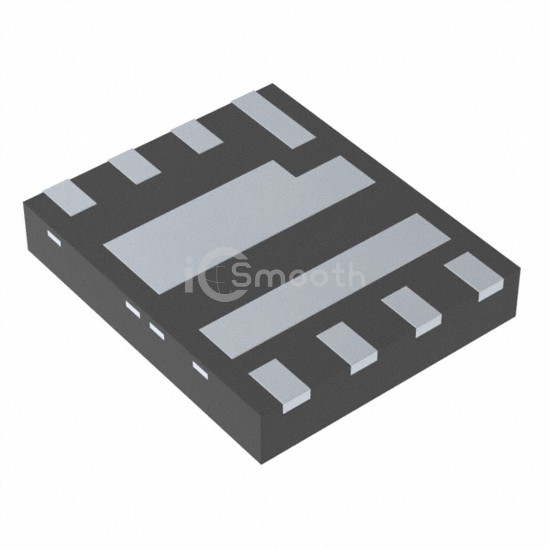

MOSFET N-CH 30V 27A/32A 8DFN

AON6758_102 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 30V 27A/32A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,880

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1975 pF @ 15 V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	4.1W (Ta), 41W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Package / Case	8-VDFN Exposed Pad
