Name: AON4703
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON4703
Price: 0.23 USD
Availability: InStock

REF: AON4703 Alpha & Omega Semiconductor Inc.

AON4703

Alpha & Omega Semiconductor Inc.

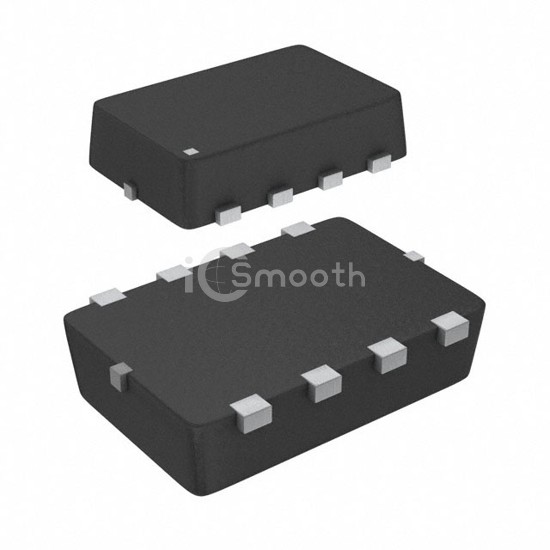

MOSFET P-CH 20V 3.4A 8DFN

AON4703 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 20V 3.4A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 8,805

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	90mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.1 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	540 pF @ 10 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x2)
Package / Case	8-SMD, Flat Lead
