Name: AON4407L
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON4407L
Availability: InStock

REF: AON4407L Alpha & Omega Semiconductor Inc.

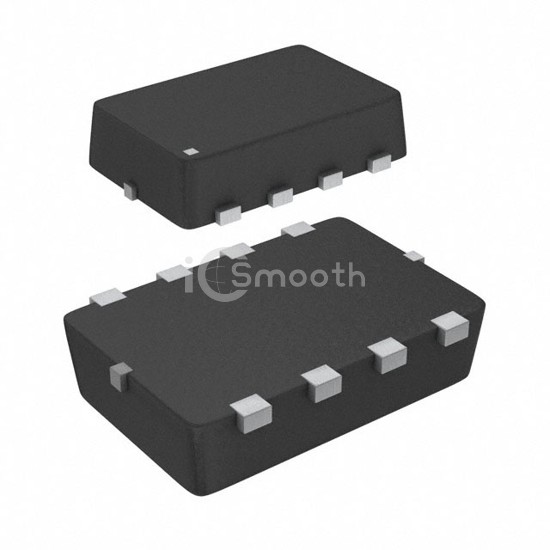

AON4407L

MOSFET P-CH 12V 9A 8DFN

AON4407L is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 12V 9A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 6,096

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	20mOhm @ 9.5A, 4.5V
Vgs(th) (Max) @ Id	850mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2100 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x2)
Package / Case	8-SMD, Flat Lead
