Name: AON2408
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON2408
Price: 0.70 USD
Availability: InStock

REF: AON2408 Alpha & Omega Semiconductor Inc.

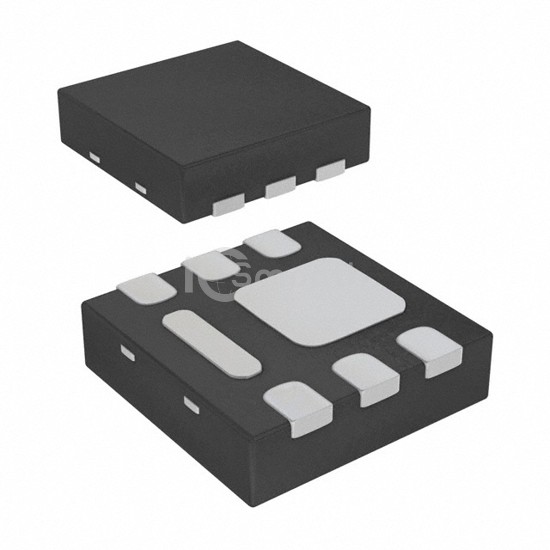

AON2408

Alpha & Omega Semiconductor Inc.

MOSFET N CH 20V 8A DFN 2X2B

AON2408 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N CH 20V 8A DFN 2X2B. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,350

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	14.5mOhm @ 8A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	782 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Package / Case	6-UDFN Exposed Pad
