Name: AON2407
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON2407
Availability: InStock

REF: AON2407 Alpha & Omega Semiconductor Inc.

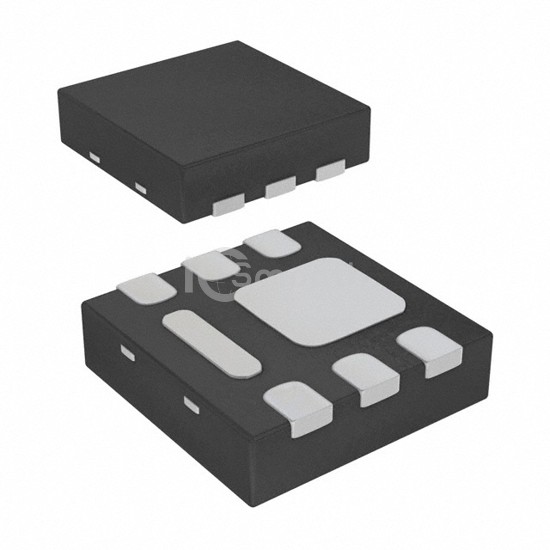

AON2407

MOSFET P-CH 30V 6.3A 6DFN

AON2407 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 6.3A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,427

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	37.5mOhm @ 6.3A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	746 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Package / Case	6-UDFN Exposed Pad
