Name: AON2401
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON2401
Availability: InStock

REF: AON2401 Alpha & Omega Semiconductor Inc.

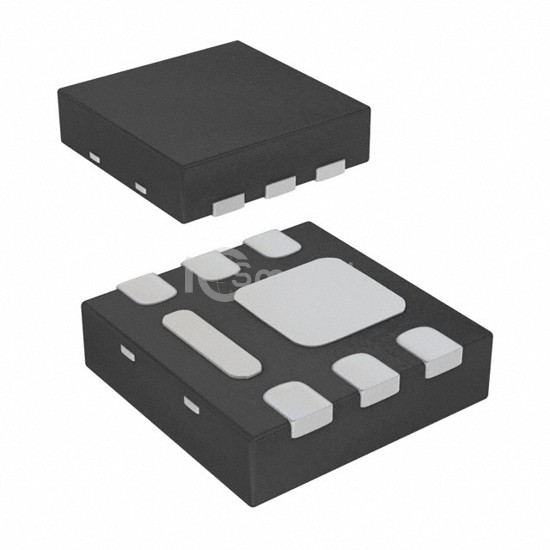

AON2401

MOSFET P-CH 8V 8A 6DFN

AON2401 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 8V 8A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,253

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 2.5V
Rds On (Max) @ Id, Vgs	22mOhm @ 8A, 2.5V
Vgs(th) (Max) @ Id	650mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 4.5 V

Vgs (Max)	±5V
Input Capacitance (Ciss) (Max) @ Vds	1465 pF @ 4 V
FET Feature	-
Power Dissipation (Max)	2.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Package / Case	6-UDFN Exposed Pad
