Name: AON1610
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON1610
Availability: InStock

REF: AON1610 Alpha & Omega Semiconductor Inc.

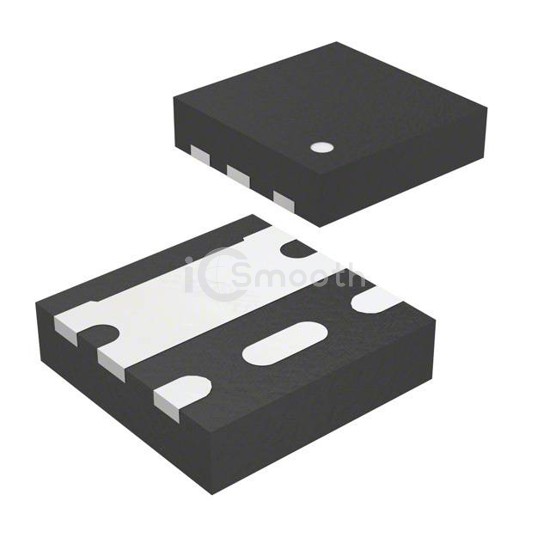

AON1610

MOSFET N-CH 20V 4A 6DFN

AON1610 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 20V 4A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 5,757

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	29mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	748 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (1.6x1.6)
Package / Case	6-PowerUFDFN
