Name: AOL1482
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOL1482
Price: 0.50 USD
Availability: InStock

REF: AOL1482 Alpha & Omega Semiconductor Inc.

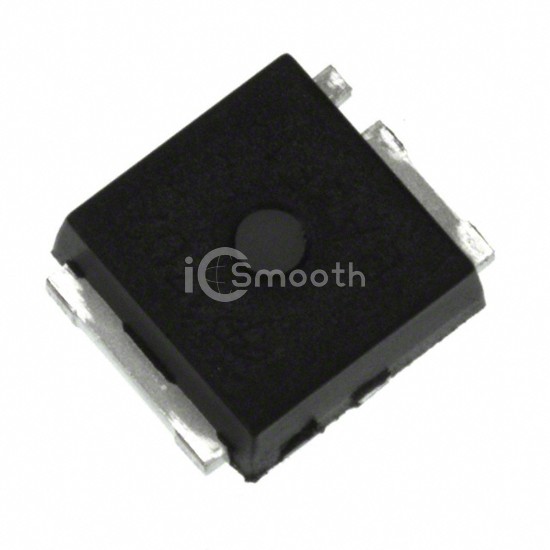

AOL1482

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 100V 4.5A ULTRASO8

AOL1482 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 100V 4.5A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 1,657

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta), 28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	37mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	44 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2000 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta), 75W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
