Name: AOL1454
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOL1454
Price: 0.45 USD
Availability: InStock

REF: AOL1454 Alpha & Omega Semiconductor Inc.

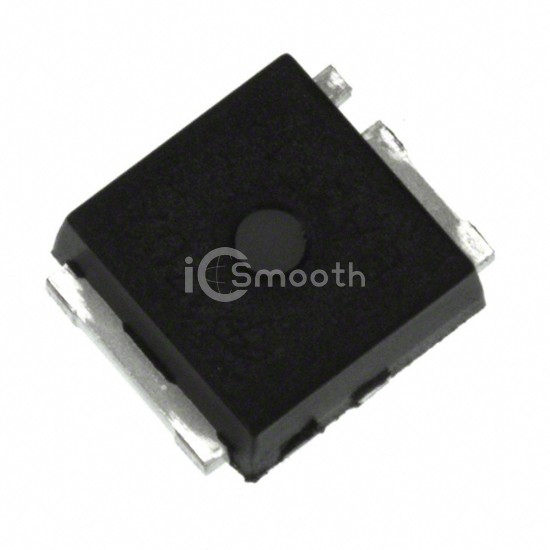

AOL1454

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 40V 12A/50A ULTRASO8

AOL1454 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 40V 12A/50A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 4,736

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1920 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 60W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
