Name: AOL1440
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOL1440
Availability: InStock

REF: AOL1440 Alpha & Omega Semiconductor Inc.

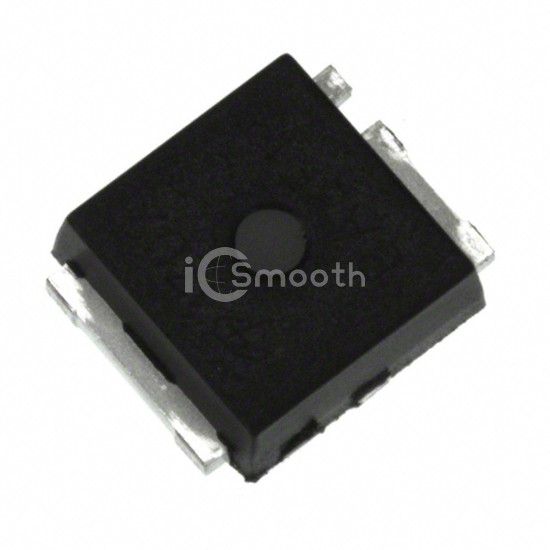

AOL1440

MOSFET N-CH 25V 21A/85A ULTRASO8

AOL1440 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 25V 21A/85A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 3,194

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V, 20V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2400 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta), 75W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
