Name: AOL1428
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOL1428
Availability: InStock

REF: AOL1428 Alpha & Omega Semiconductor Inc.

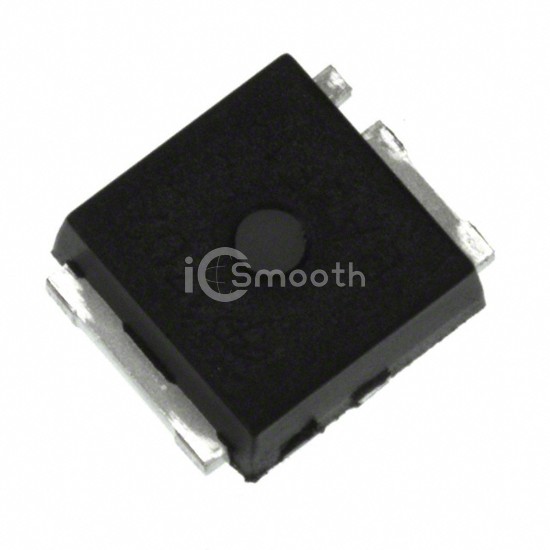

AOL1428

MOSFET N-CH 30V 12.4A ULTRASO8

AOL1428 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 30V 12.4A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 3,765

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	12.4A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1000 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta), 43W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
