Name: AOL1418
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOL1418
Availability: InStock

REF: AOL1418 Alpha & Omega Semiconductor Inc.

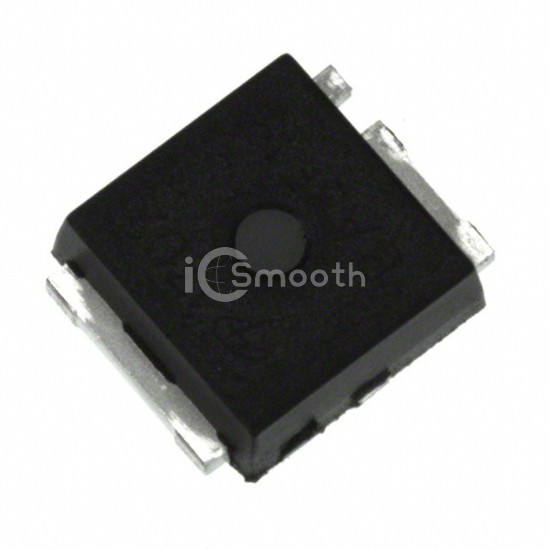

AOL1418

MOSFET N-CH 30V 15A/85A ULTRASO8

AOL1418 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 30V 15A/85A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 8,752

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1600 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.08W (Ta), 100W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
