Name: AOL1404
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOL1404
Availability: InStock

REF: AOL1404 Alpha & Omega Semiconductor Inc.

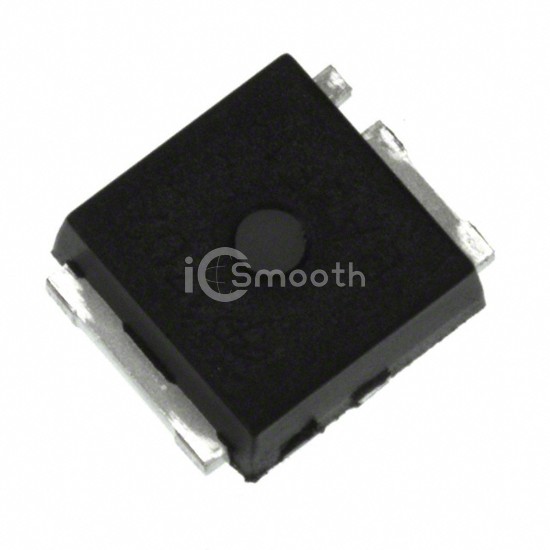

AOL1404

MOSFET N-CH 20V 18A/45A ULTRASO8

AOL1404 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 20V 18A/45A ULTRASO8. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 3-PowerSMD, Flat Leads.

Datasheet Request a Quote

In Stock: 3,211

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	18A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	4mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	4630 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 60W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UltraSO-8™
Package / Case	3-PowerSMD, Flat Leads
