Name: AOI468
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOI468
Price: 0.72 USD
Availability: InStock

REF: AOI468 Alpha & Omega Semiconductor Inc.

AOI468

Alpha & Omega Semiconductor Inc.

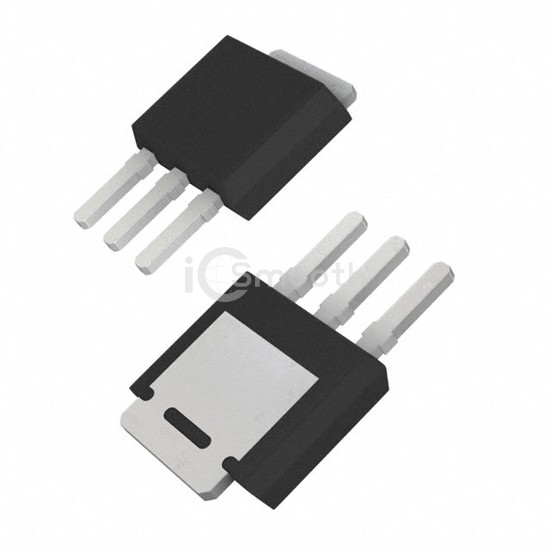

MOSFET N CH 300V 11.5A TO252

AOI468 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N CH 300V 11.5A TO252. Key specifications: mounting type Through Hole, operating temperature -50°C ~ 175°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 1,380

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	300 V
Current - Continuous Drain (Id) @ 25°C	11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	420mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	790 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-50°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251A
Package / Case	TO-251-3 Stub Leads, IPak
