Name: AOC2421
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOC2421
Price: 0.22 USD
Availability: InStock

REF: AOC2421 Alpha & Omega Semiconductor Inc.

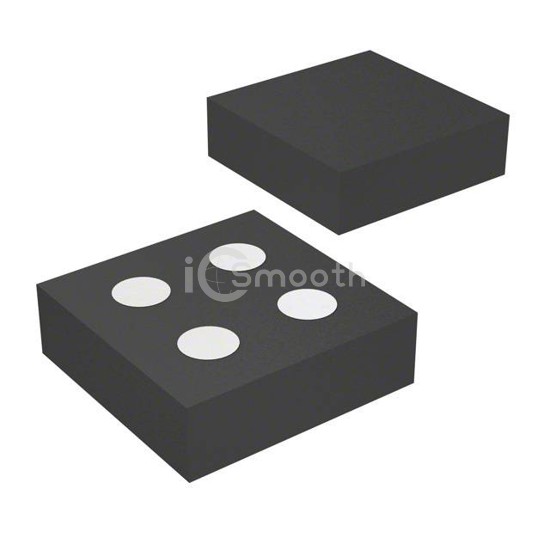

AOC2421

Alpha & Omega Semiconductor Inc.

MOSFET P-CH 8V 2.5A 4ALPHADFN

AOC2421 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 8V 2.5A 4ALPHADFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, No Lead.

Datasheet Request a Quote

In Stock: 1,013

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 2.5V
Rds On (Max) @ Id, Vgs	62mOhm @ 1.5A, 2.5V
Vgs(th) (Max) @ Id	700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±5V
Input Capacitance (Ciss) (Max) @ Vds	752 pF @ 4 V
FET Feature	-
Power Dissipation (Max)	600mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-AlphaDFN (0.97x0.97)
Package / Case	4-SMD, No Lead
