Name: AOC2411
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOC2411
Availability: InStock

REF: AOC2411 Alpha & Omega Semiconductor Inc.

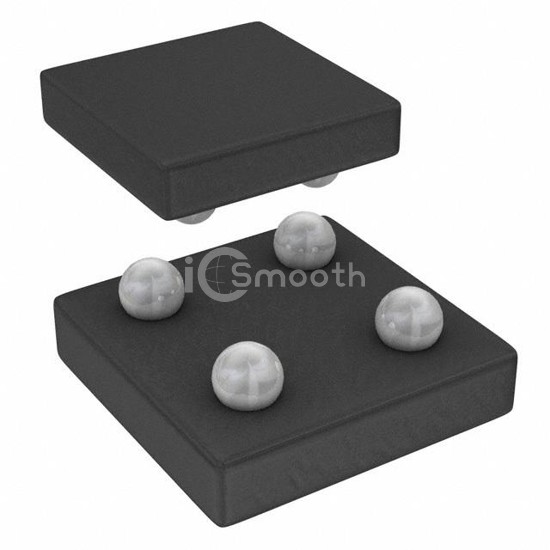

AOC2411

MOSFET P-CH 30V 3.4A 4WLCSP

AOC2411 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 3.4A 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 7,357

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	45mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1630 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	800mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (1.6x1.6)
Package / Case	4-UFBGA, WLCSP
