Name: AOC2401
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOC2401
Availability: InStock

REF: AOC2401 Alpha & Omega Semiconductor Inc.

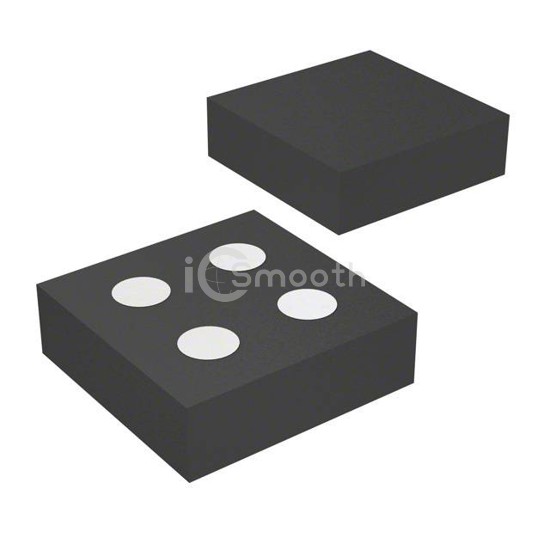

AOC2401

MOSFET P-CH 30V 3A 4ALPHADFN

AOC2401 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH 30V 3A 4ALPHADFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, No Lead.

Datasheet Request a Quote

In Stock: 7,851

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	41mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1327 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	550mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-AlphaDFN (1.57x1.57)
Package / Case	4-SMD, No Lead
