Name: AO7412
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO7412
Availability: InStock

REF: AO7412 Alpha & Omega Semiconductor Inc.

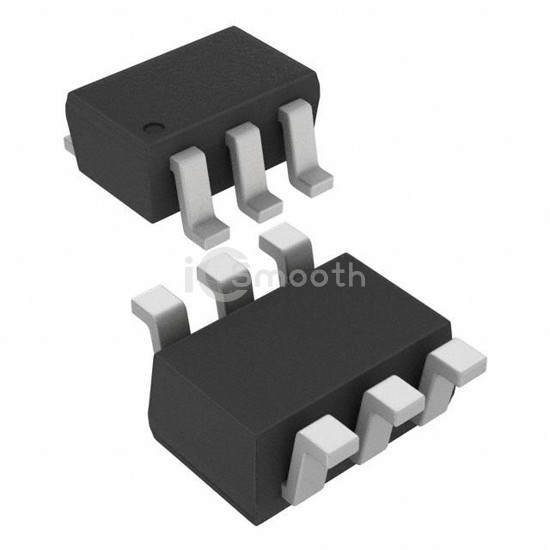

AO7412

MOSFET N-CH 30V 1.7A SC70-6

AO7412 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 30V 1.7A SC70-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 4,496

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	90mOhm @ 2.1A, 10V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.6 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	270 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70-6
Package / Case	6-TSSOP, SC-88, SOT-363
