Name: AO7410
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO7410
Price: 0.13 USD
Availability: InStock

REF: AO7410 Alpha & Omega Semiconductor Inc.

AO7410

Alpha & Omega Semiconductor Inc.

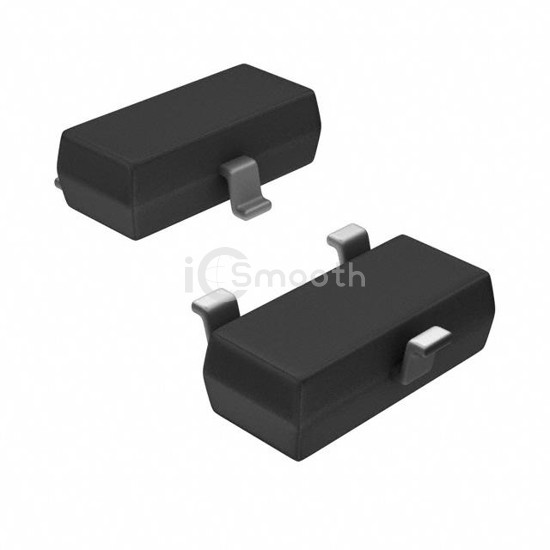

MOSFET N-CH 30V 1.7A SC70-3

AO7410 is a Transistors - FETs, MOSFETs - Single manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH 30V 1.7A SC70-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 6,799

Specifications

17 parameters

Product Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	55mOhm @ 1.7A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 10 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	285 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-70-3
Package / Case	SC-70, SOT-323
